Pro-Grid filter tanks

are constructed of a durable glass-reinforced copolymer, for the ultimate in strength, durability and long life.

Featuring “service ease” assembly, you have low-maintenance and dependable operation.

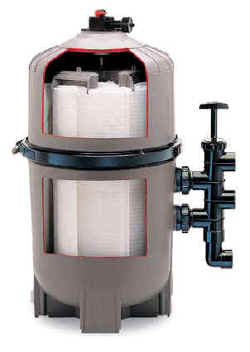

Click Image for Filter Close up









717.442.3660

Email: Serenity Pools

Pro-Grid™ Vertical Grid D.E. Filter

FILTER MEDIA

Serenity equips your pool with a Pro-Grid DE filtering system

What is DE? Diatomaceous earth is a porous powder with microscopic openings that when magnified look like tiny sponges. Clear water passes through these openings, but particles as small as 2 to 5 microns, are trapped during the first pass through the media. D.E. filters have internal elements that become coated with D.E. It is this 'filter cake' that strains dirt, dust and algae from the water.

Similar to sand filters, when D.E. filters become dirty, they are cleaned either by backwashing, or regenerating and draining the clogged D.E. to the 'waste' line. To restore filtration, a fresh 'charge' of D.E. is added to the filter.

Pro-Grid™ vertical grid D.E. filters provide superior water clarity, efficient flow and large cleaning capacity for pools and spas of all types and sizes. Constructed with high-strength reinforced thermoplastic, Pro-Grid combines high-technology features and "service-ease" design for an unparalleled filtration value for both new pool and aftermarket installations.

In addition, Pro-Grid delivers low maintenance and dependable operation.

Filter Detail

Features:

  • Reinforced thermoplastic filter tanks constructed from durable glass reinforced copolymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems

  • Self-Aligned tank top and bottom make access to servicing the grid elements fast and simple

  • Heavy-duty, tamper-proof one-piece flange clamp securely fastens tank top and bottom, allowing for quick access to all internal components without disturbing piping or connections

  • High impact grid elements designed for up-flow filtration and top-down backwashing for maximum efficiency

  • Integral lift handles and uniform low-profile base make removal of grid nest fast and simple

  • Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of D.E. to grids

  • 72 ft filter made of reinforced thermoplastic allows for both commercial and large residential applications and years of non-corrosive, trouble-free performance

  • New High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
